The part broke, the machine is down, and the company that made it stopped answering the phone years ago. You do not need a lecture, you need the part. Our reverse engineering services take that orphaned component and turn it into clean, manufacturable CAD, so you can make it again. Using scan to CAD workflows, we capture the real geometry and rebuild it as a proper model, not a rough trace.
This is one of our favorite kinds of work because it solves a problem most shops will not touch. When there is no drawing, no data, and no OEM support, we start from the physical part itself and work backward to a file you can build from for years to come.
When Reverse Engineering Is the Answer
Engineers and buyers come to us with the same handful of situations, and reverse engineering quietly fixes all of them. If any of these sound like your week, you are in the right place.
- The part is obsolete and the original supplier no longer makes or supports it.
- No CAD or data exists, so there is nothing to send a machine shop.
- You want to improve a part, redesigning fitment or fixing a weak point in the original.
- You need to reproduce a legacy component to keep older equipment running.
Got an obsolete or undocumented part? Talk through your options with our team.
Files You Can Actually Build From

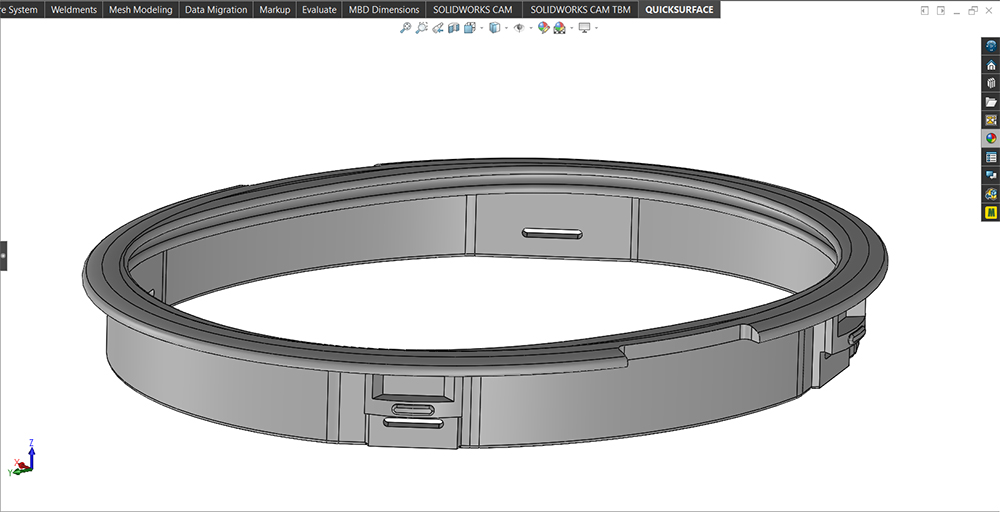

A reverse engineering job is only finished when you have data your shop, or ours, can run with. That is why we deliver more than a mesh. Our 3D scan to CAD services produce the formats engineers and manufacturers actually use, cleaned up and ready to go.
- STEP files for broad CAD and machining compatibility
- SolidWorks native files for ongoing design work
- Manufacturing drawings for the shop floor
- STL and mesh cleanup when you need a refined surface
- Parametric CAD models you can edit and reuse
We will talk through which deliverable fits your plans before we start. If you are redesigning, a parametric model saves you headaches later. If you just need the part made, a clean STEP file and a drawing might be all you need.
From Model to Finished Part
The real payoff of reverse engineering here is what comes next. Because we also machine and print in-house, your new model can roll straight into CNC milling, low-volume production, or additive manufacturing without leaving the building. The geometry we captured is the geometry we make.
If you are choosing materials, our materials pages walk through the metals and filaments we work in, so the recreated part performs as well as or better than the original. Bring us the old part, and we will help you make it new again.
Send us your part or your drawings and get a clear, honest quote on scanning, machining, or printing.
